High-temperature circulators Forte HT-C.U., with cooling unit More photos

High-temperature circulators Forte HT-C.U., with cooling unit

The high-temperature circulators are equipped with a powerful cooling unit to enable temperature control tasks from 40 °C upwards. The cooling unit ensures rapid cooling phases across the entire temperature range. Exothermic reactions are quickly compensated.
Choose a variant
Manufacturer
  • Julabo GmbH
Category

Product variant

Name Hermes code and manufacturer code
UNSPSC Weight ( g ) Type Power supply frequency ( Hz ) Max. voltage ( V ) Type of auxiliary energy Power supply Heating capacity ( W )
Pieces in a package Price without VAT
Obrázek produktové varianty Forte HT60-M3-C.U.
4701645 / 9800066
UNSPSC
-
Weight ( g )
37 kg
Type
Forte HT60-M3-C.U.
Power supply frequency ( Hz )
60 Hz
Max. voltage ( V )
208 V
Type of auxiliary energy
-
Power supply
208 V, 60 Hz
Heating capacity ( W )
6 kW
Pieces in a package
-
Upon request

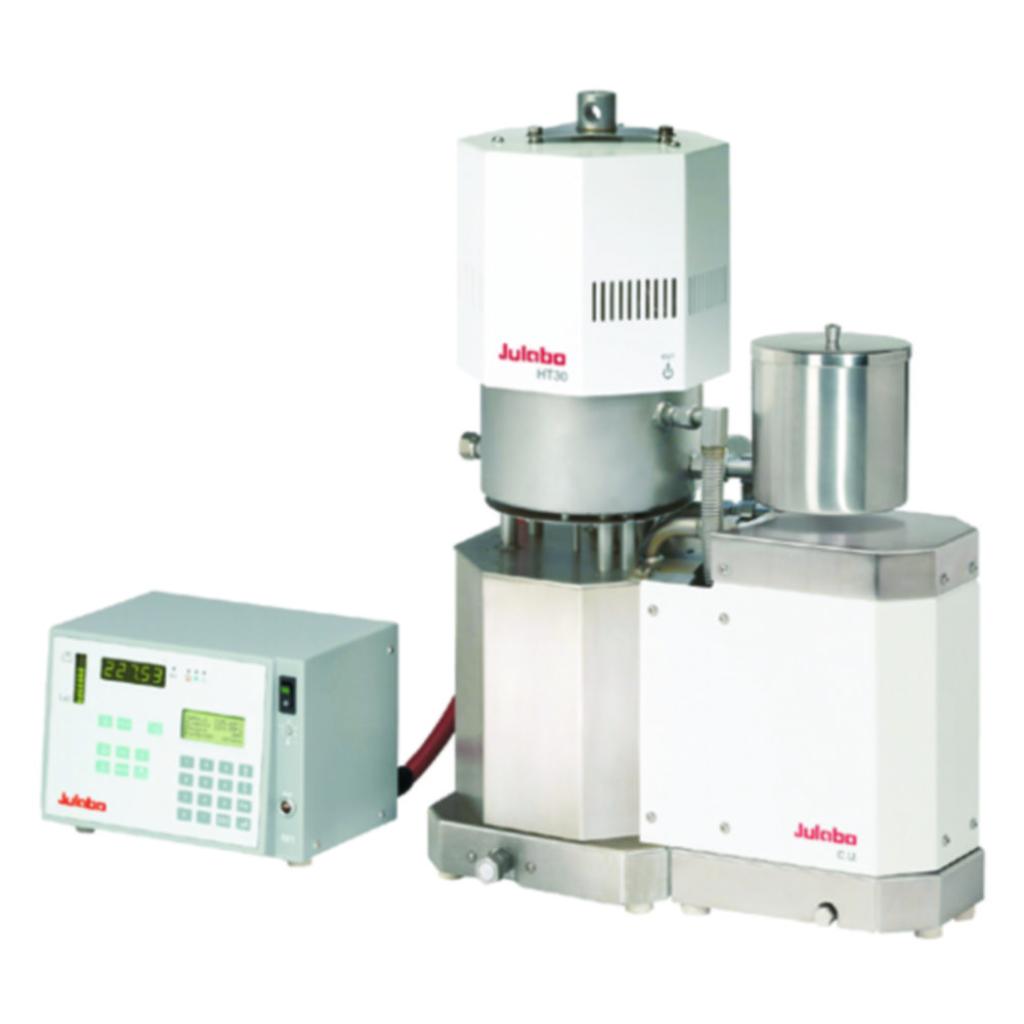

Obrázek produktové varianty Forte HT30-M1-C.U.
6222575 / 9800035
UNSPSC
41-10-37-15
Weight ( g )
35 kg
Type
Forte HT30-M1-C.U.
Power supply frequency ( Hz )
50 Hz
Max. voltage ( V )
230 V
Type of auxiliary energy
Mains connection
Power supply
230 V, 50 Hz
Heating capacity ( W )
3 kW
Pieces in a package
-
Upon request

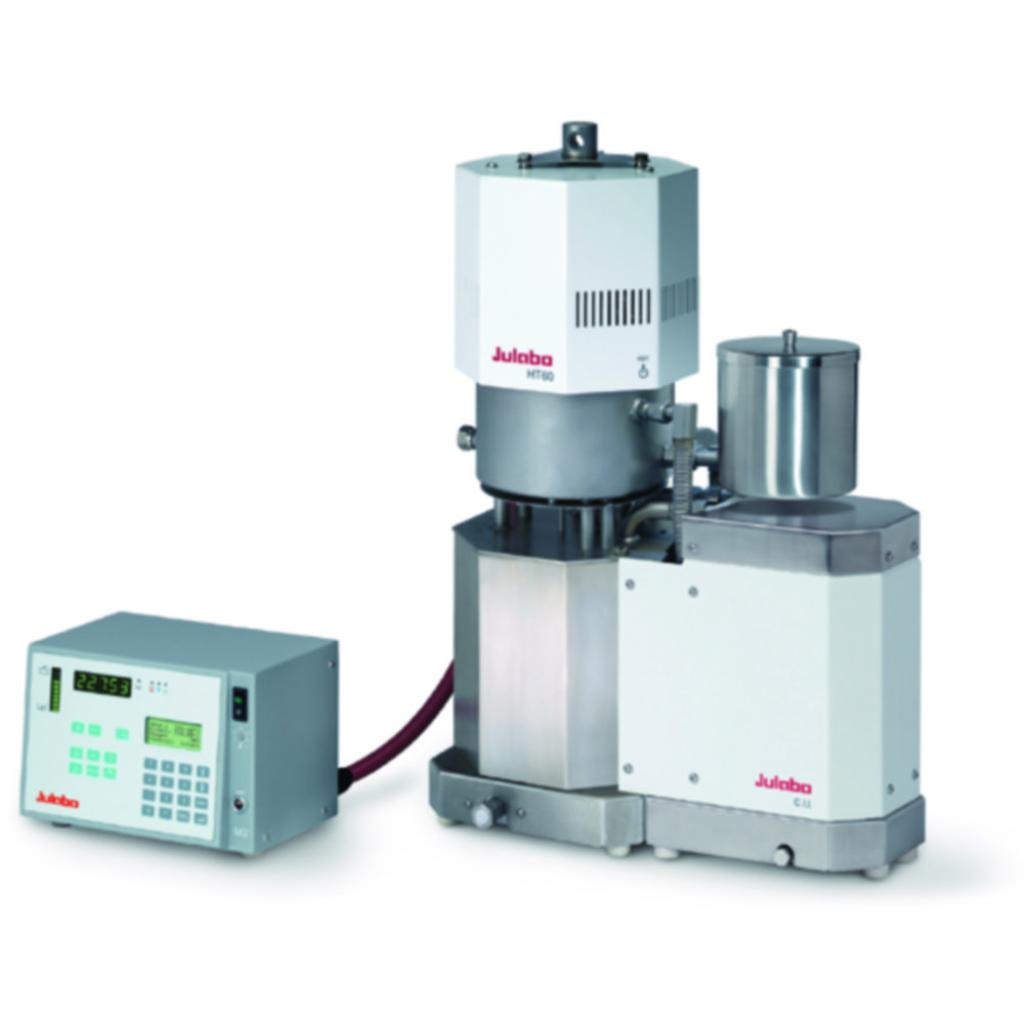

Obrázek produktové varianty Forte HT60-M2-C.U.
9858404 / 9800065
UNSPSC
-
Weight ( g )
37 kg
Type
Forte HT60-M2-C.U.
Power supply frequency ( Hz )
50 Hz
Max. voltage ( V )
400 V·3/N/PE
Type of auxiliary energy
Mains connection
Power supply
400 V·3/N/PE, 50 Hz
Heating capacity ( W )
7 kW
Pieces in a package
-
Upon request

Technical specifications

Cooling capacity at 20 °C 15 kW
Ext. dim. (WxDxH) 430 x 230 x 580 mm
Ext. depth 230 mm
Ext. height 580 mm
Ext. width 430 mm
IP code IP 21
Max. delivery pressure 1.2 bar
Max. temperature 400 °C
Max. volume bath 2 l
Min. temperature 40 °C
Programmable Yes
Temperature 40 ... 400 °C
Volume bath 2 l

Photos

High-temperature circulators Forte HT-C.U., with cooling unit High-temperature circulators Forte HT-C.U., with cooling unit
