Advanced Upright Microscope for Life Science and Laboratories, BA310E More photos

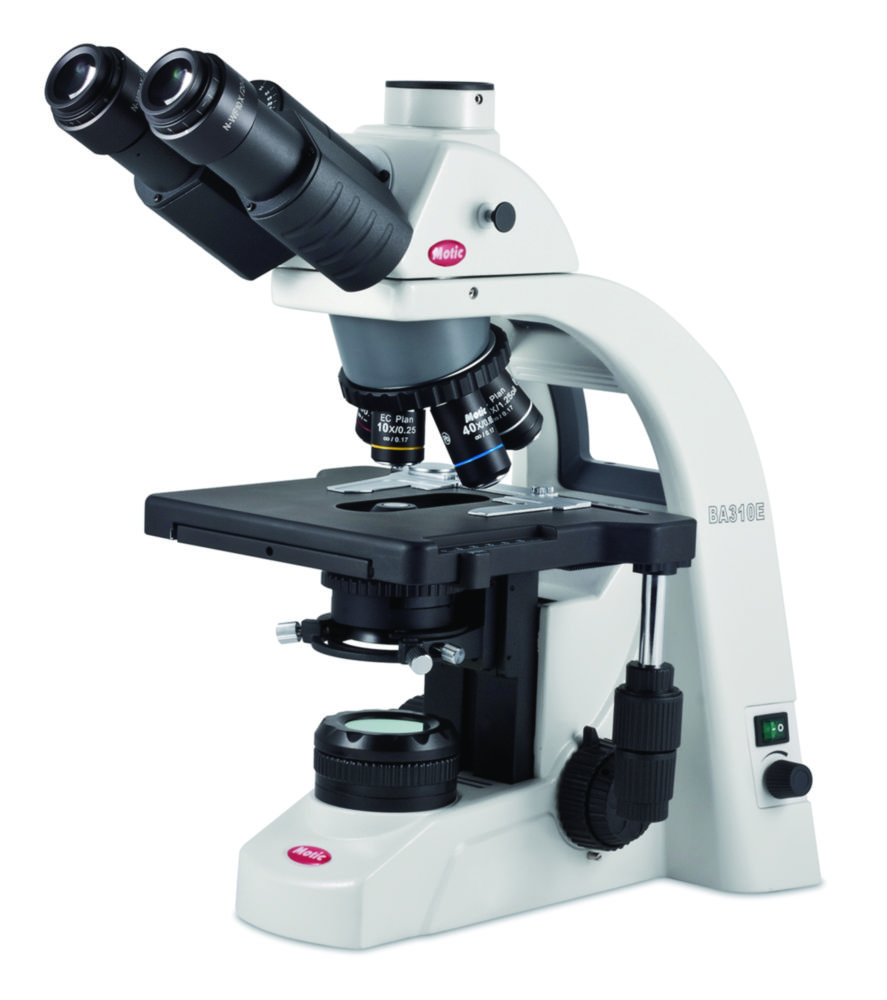

Advanced Upright Microscope for Life Science and Laboratories, BA310E

The BA310E is specially designed for the requirements of daily routine in universities, clinics and laboratories.
  • Infinity Optics [CCIS®]
  • Observation Tube Siedentopf Type, Binocular - / Phototube 30°, F.N. 20
  • Interpupillary Distance 48-75 mm
  • Eyepieces High-Eyepoint N-WF 10x/20 mm with dioptre adjustment on both eyepieces and rubber eyecups
  • Reversed quintuple revolving nosepiece
  • Objectives CCIS EC Plan 4x, 10x, 40x-S, 100x-S-Oil
  • Built in low position coaxial, rackless mechanical stage (right hand control)
  • Focusable Abbe condenser N.A. 0.90/1.25 with iris diaphragm and slot
  • Koehler illumination 3 W LED with intensity control
  • Universal power supply 100-240 V
  • Scope of supply: Immersion oil (5 ml), power cord, Allen hexagonal key, thumb crew, vinyl dust cover
  • 6 V/30 W HAL illumination available on option

Optional, available: Phase-contrast 10x/20x/40x/100x for slider or Turret-condensor, DF 10x-40x for slider or Turret-condensor, Polarization
Choose a variant
Manufacturer
  • MOTIC Deutschland GmbH
Category

Product variant

Name Hermes code and manufacturer code
Tube
Pieces in a package Price without VAT
Obrázek produktové varianty BA310E
6262306 / 1100100402433
Tube
Binocular
Pieces in a package
-
Upon request
Obrázek produktové varianty BA310E
7659854 / 1100100402443
Tube
Trinocular
Pieces in a package
-
Upon request

Technical specifications

Condenser Abbe 0.90 /1.25
Depth 400 mm
Dimensions (WxDxH) 220 x 400 x 400 mm
Height 400 mm
Inclination angle tube 30°
Interpupillary distance 48 ... 75 mm
Light type LED
Magnification objectives 4x, 10x, 40x, 100x
Max. interpupillary distance 75 mm
Max. voltage 240 V
Min. interpupillary distance 48 mm
Min. voltage 100 V
Power supply 100 ... 240 V
Revolving nosepiece 5-fold
Type BA310E
Type of auxiliary energy Mains connection
Weight 8.6 kg
Width 220 mm
